***Ordering for this batch is now CLOSED and in production***
Estimated completion/shipment: Late December
Click the BLUE bottom to sign up for a notification on the next batch
This adapter kit is ONLY compatible with the Titan Fitness 3x3 Lever Arms
3x3 Lever Arm tubes NOT included
(You must already own or purchase the arms separately from the respective company)
Each batch consists of 50 total sets of adapters, ordering closes when all 50 are sold. Each kit is personally built, assembled, and shipped by us.
DESCRIPTION
Turn your boring lever arms into the most versatile piece of equipment in your home gym with the ORIGINAL 180-degree lever arms using our PATENTED design!

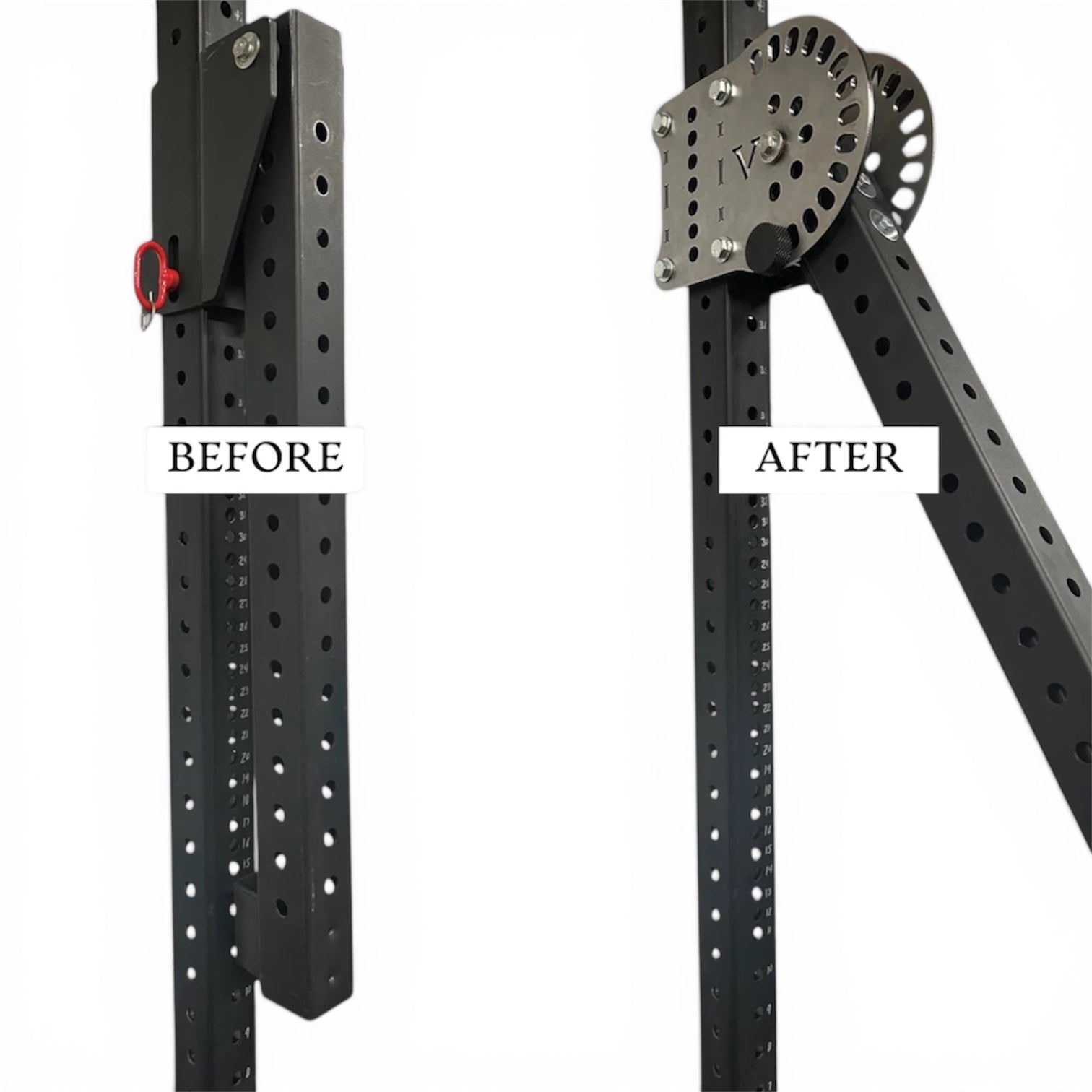

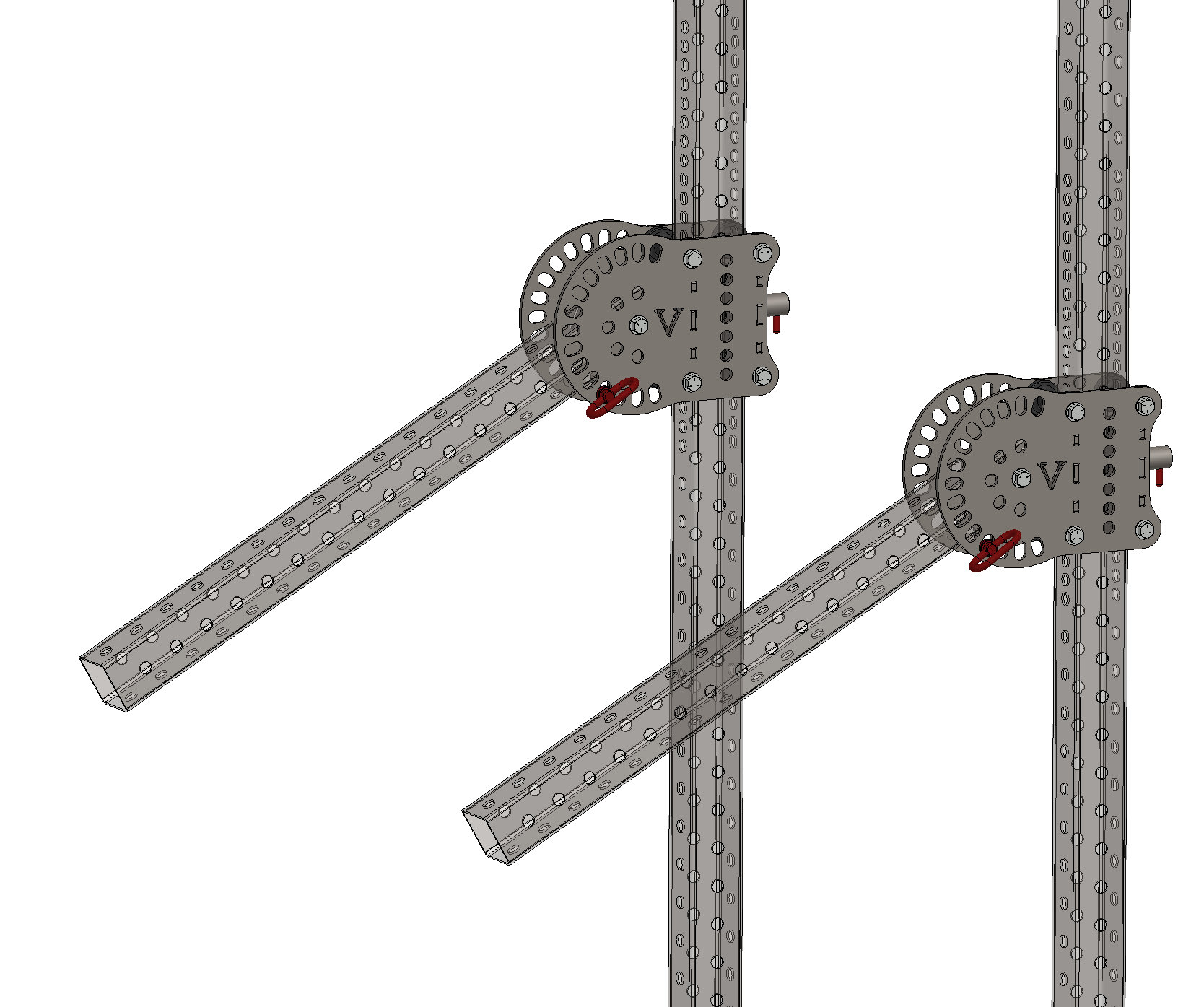

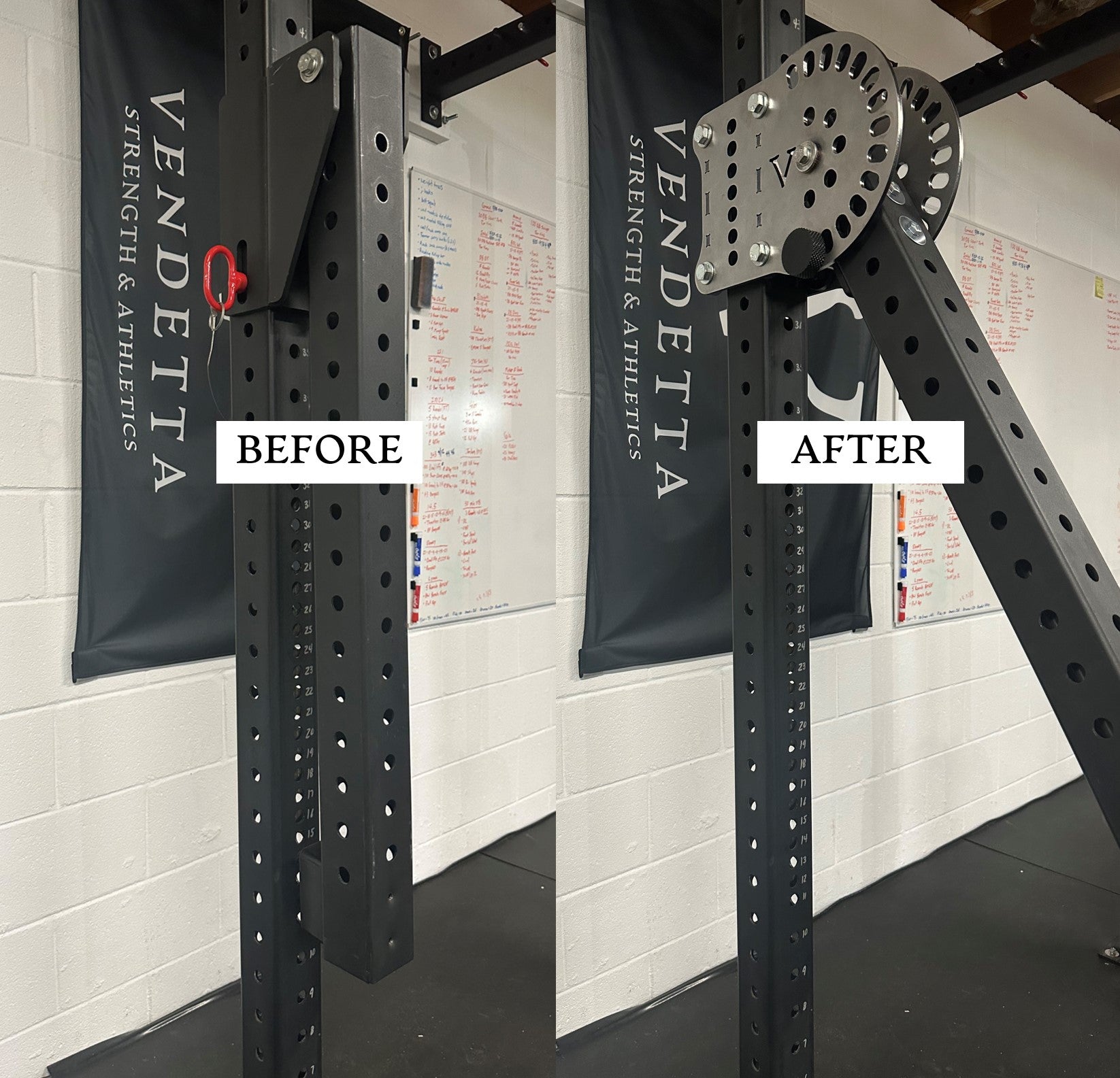

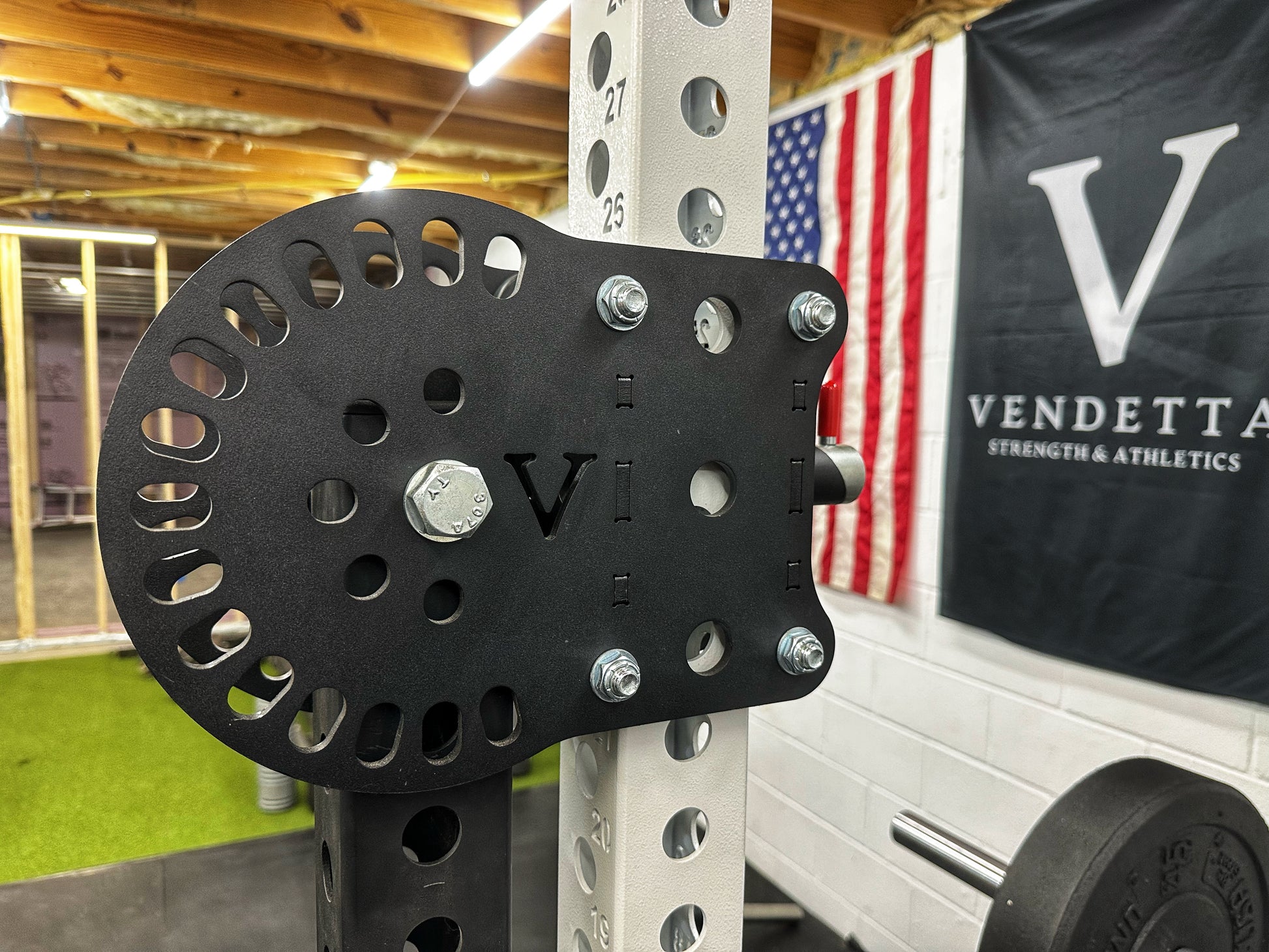

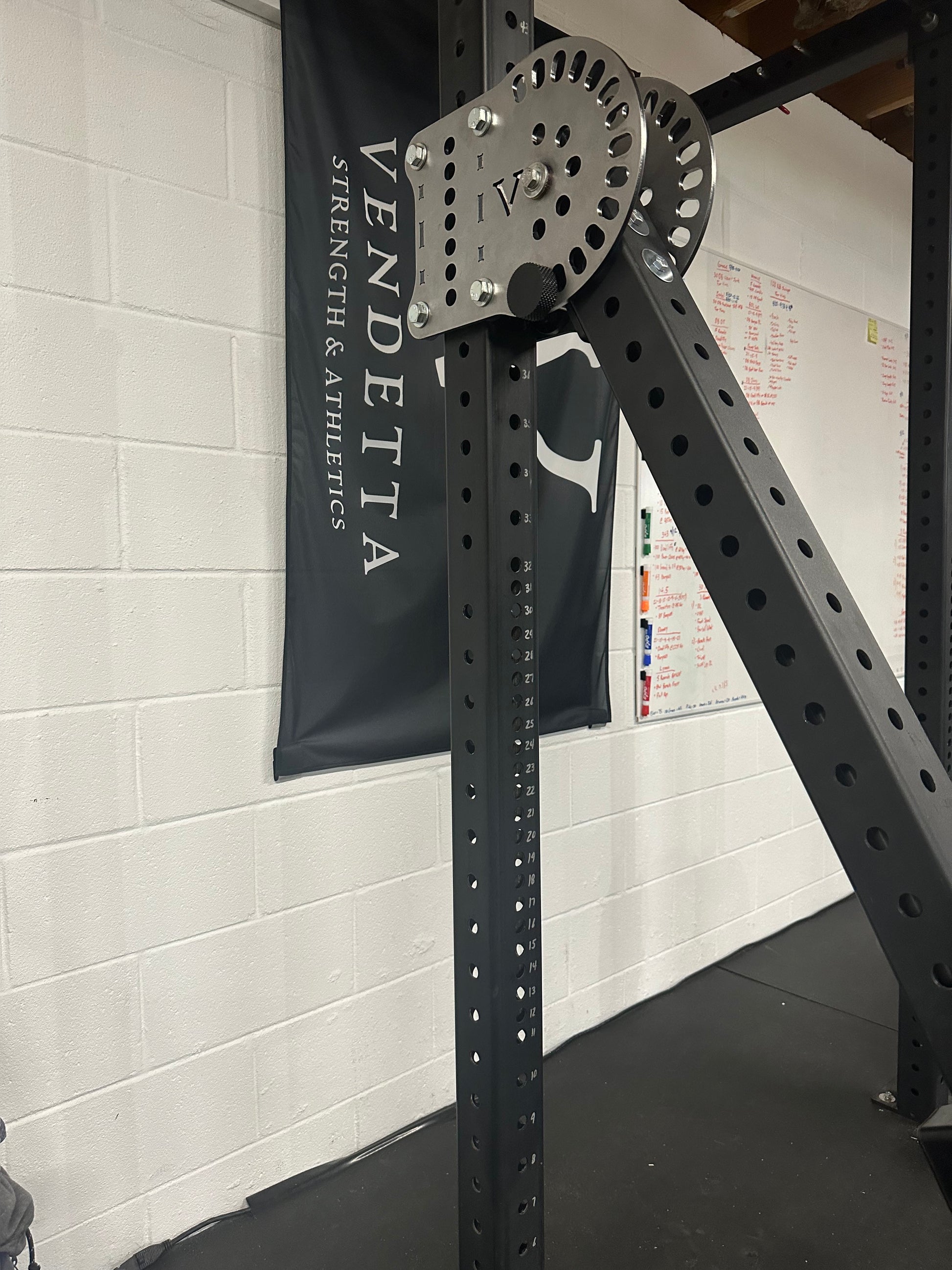

Our adapter kit replaces the existing upper mount with our unique 180° adjustable trolley that allows you to easily set the starting position making them extremely quick and convenient to set up.
The 180° adjustability allows you to set the starting angle of the lever arm so you can perform endless new exercises such as flat presses, incline presses, decline presses, hammer presses, shoulder presses, rows, calf raises, leg curls, leg extensions, various squats, hip thrusts, and several other exercises.

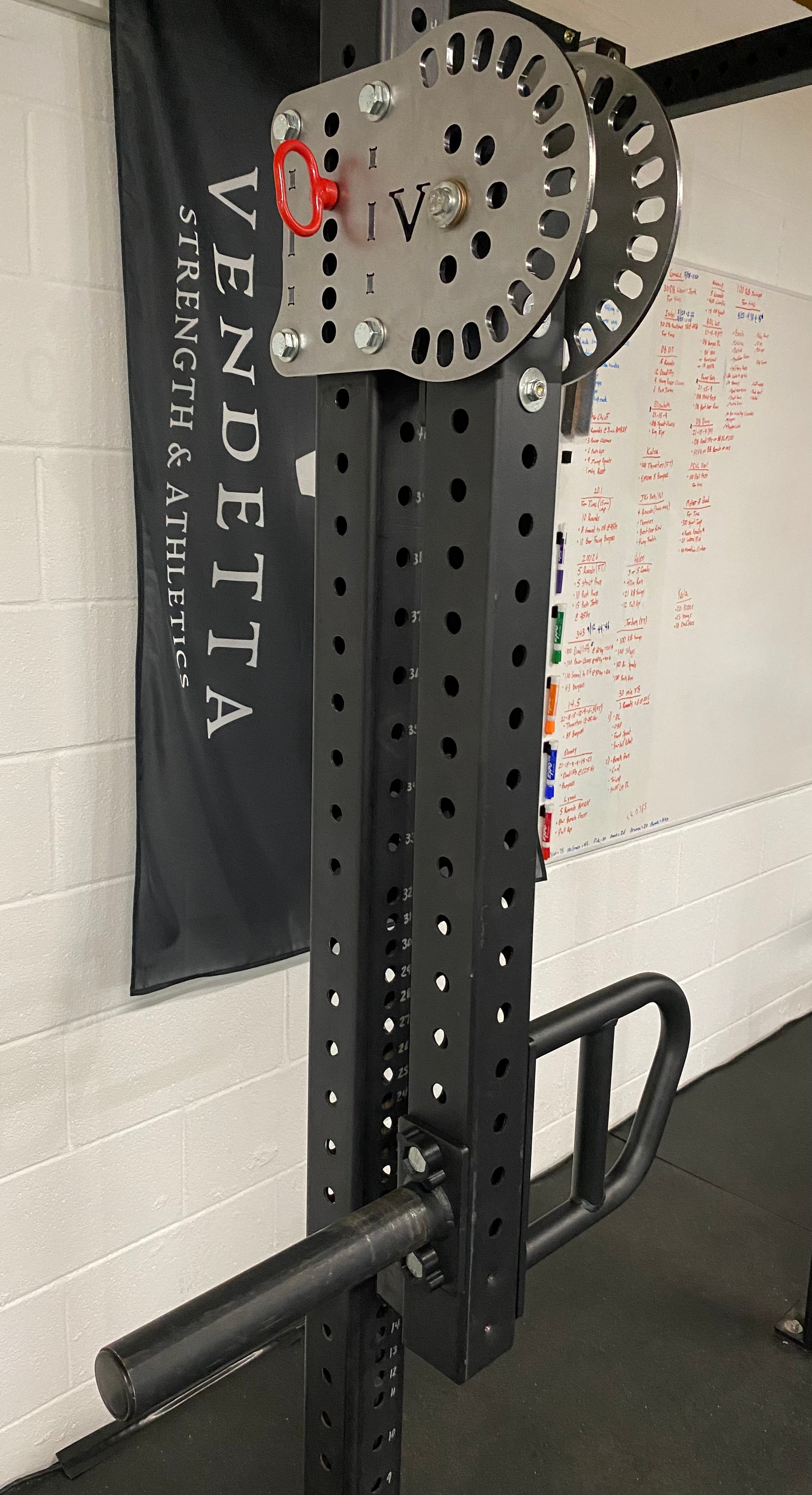

Additionally, the adjusting pin can also be inserted through the bracket and tube to securely lock the arm into position for pull-ups, dips, bodyweight rows, or out-of-the-way storage.
IMPORTANT
This adapter kit is specifically built to only be compatible with Titan 3x3 lever arms for both 5/8” and 1” holes, please ensure you are selecting the correct kit before ordering.
When selecting the hole size, select the size that matches your rack.
The 180° outer holes align with the existing holes in the lever arm tube. The inner 180° holes are designed to align with the existing lock-out hole on the Rep lever arms and are not used with the Titan lever arms.
The adjusting pin is 5/8” for both the 1” and 5/8” versions. This allows the 1” version to still have 15 adjustable increments with the included 1” to 5/8” hole adapter.
Our trolleys will work on ALL 3” x 3” racks with 5/8” or 1” alternating holes.
This version will NOT work on 2" x 3" racks.
FEATURES
- Complete kits for 1 pair of lever arms (1 adapter per side, 2 total)

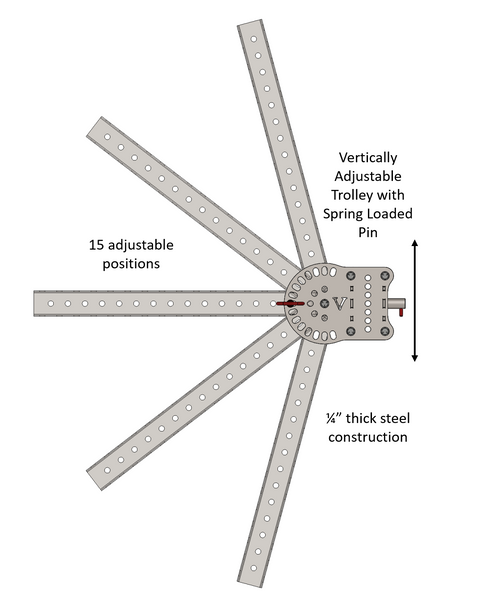

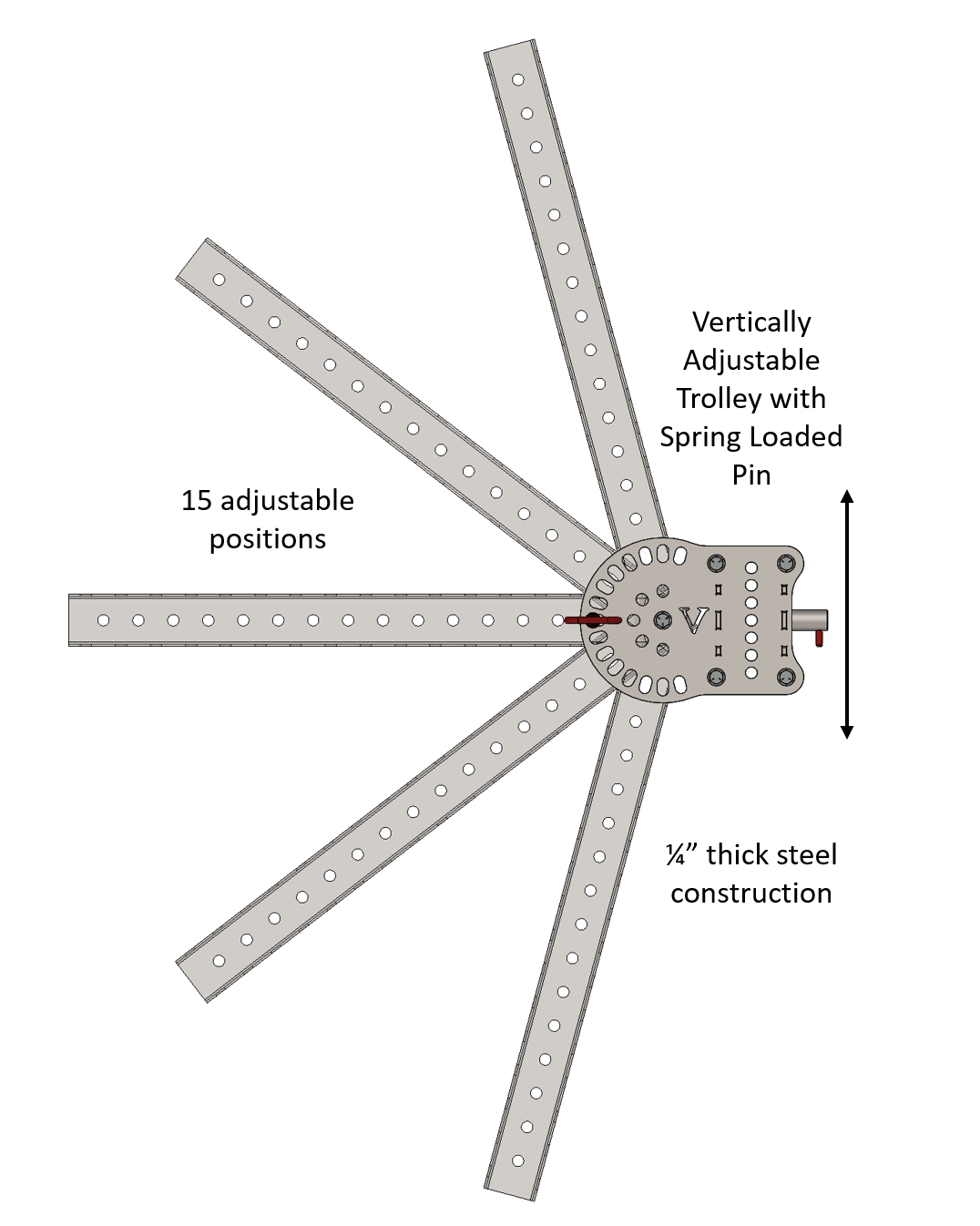

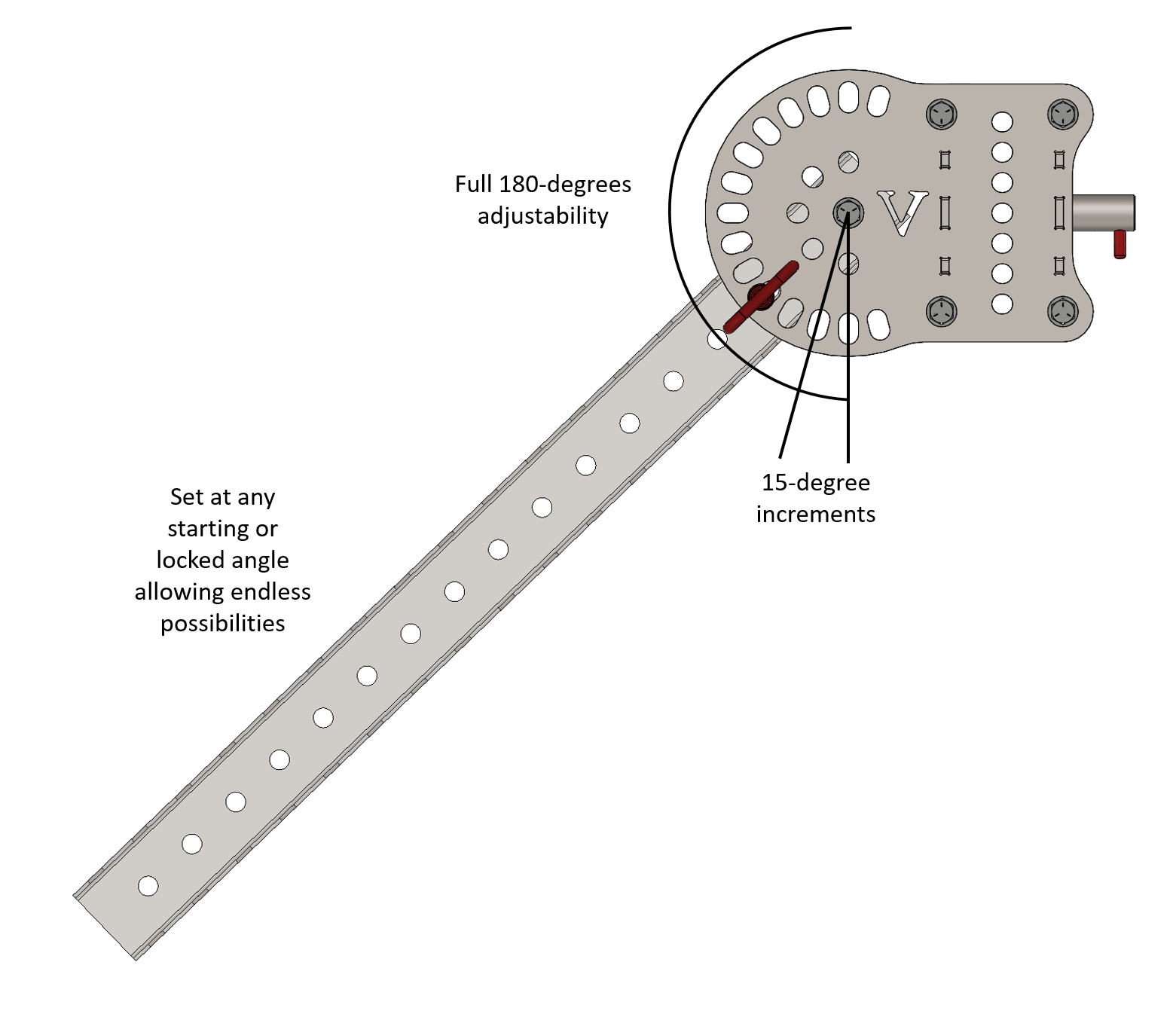

- Full 180° degrees of adjustability
- 15 possible positions at equally spaced increments
- Works with all 3" x 3" racks (including metric 75mm x 75mm)
- 5/8" and 1" versions are available

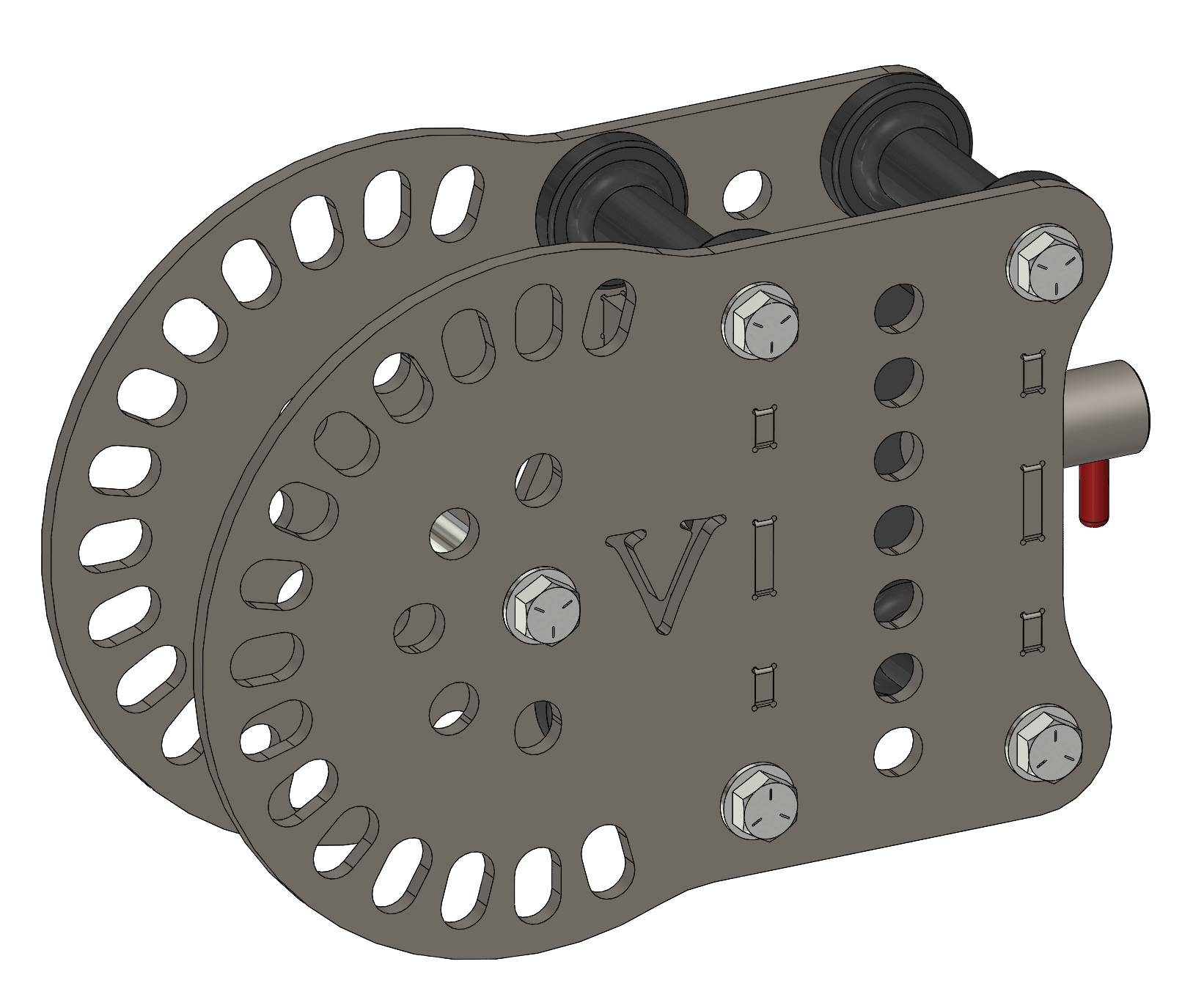

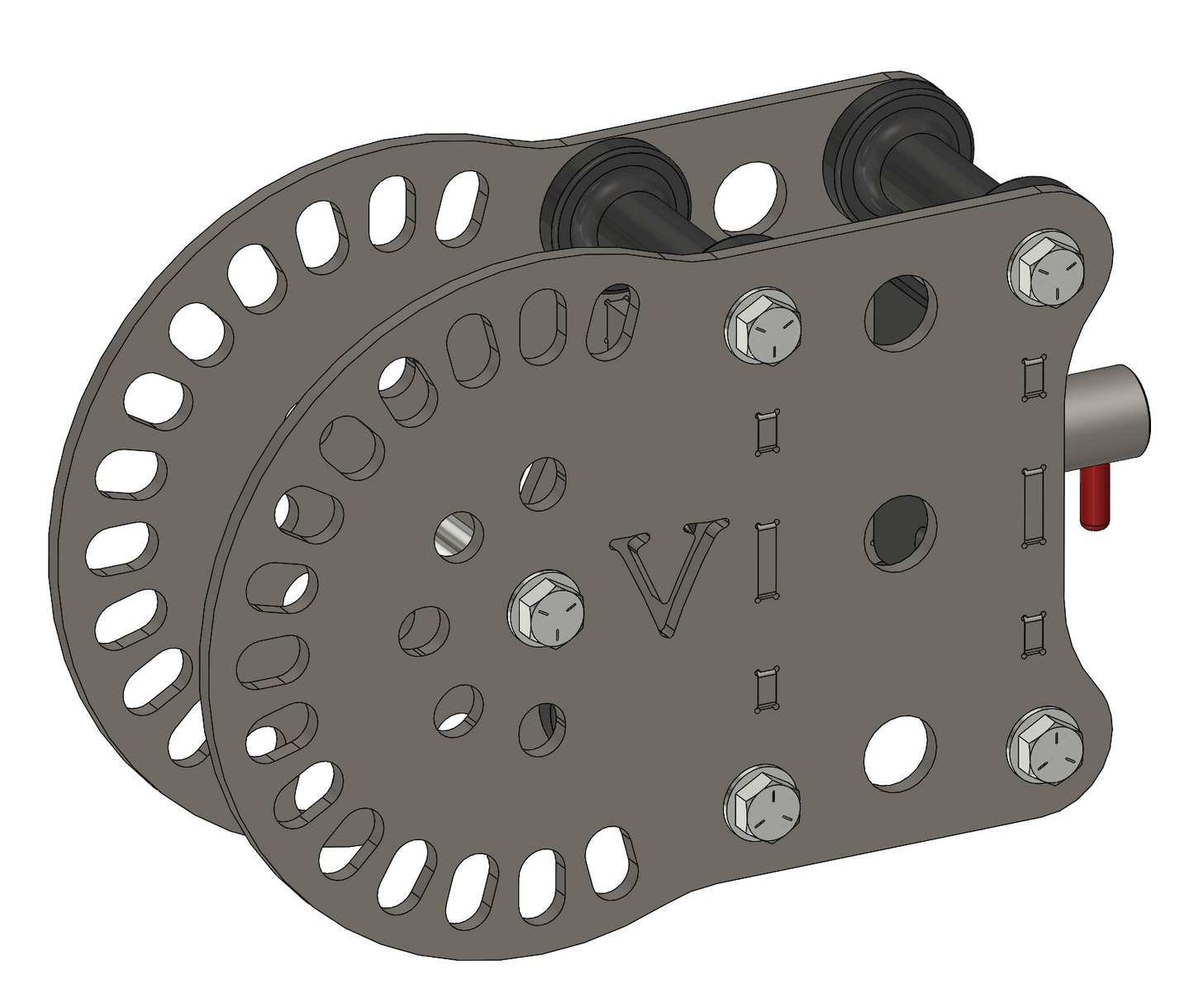

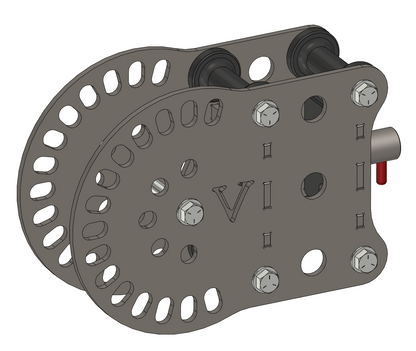

- Adjustable Trolley with rollers
- Spring-Loaded Adjusting Pin for easy up and down adjustments
- UHMW sliders
- Heavy-duty 1/4" thick steel construction
- All necessary mounting hardware and assembly instructions

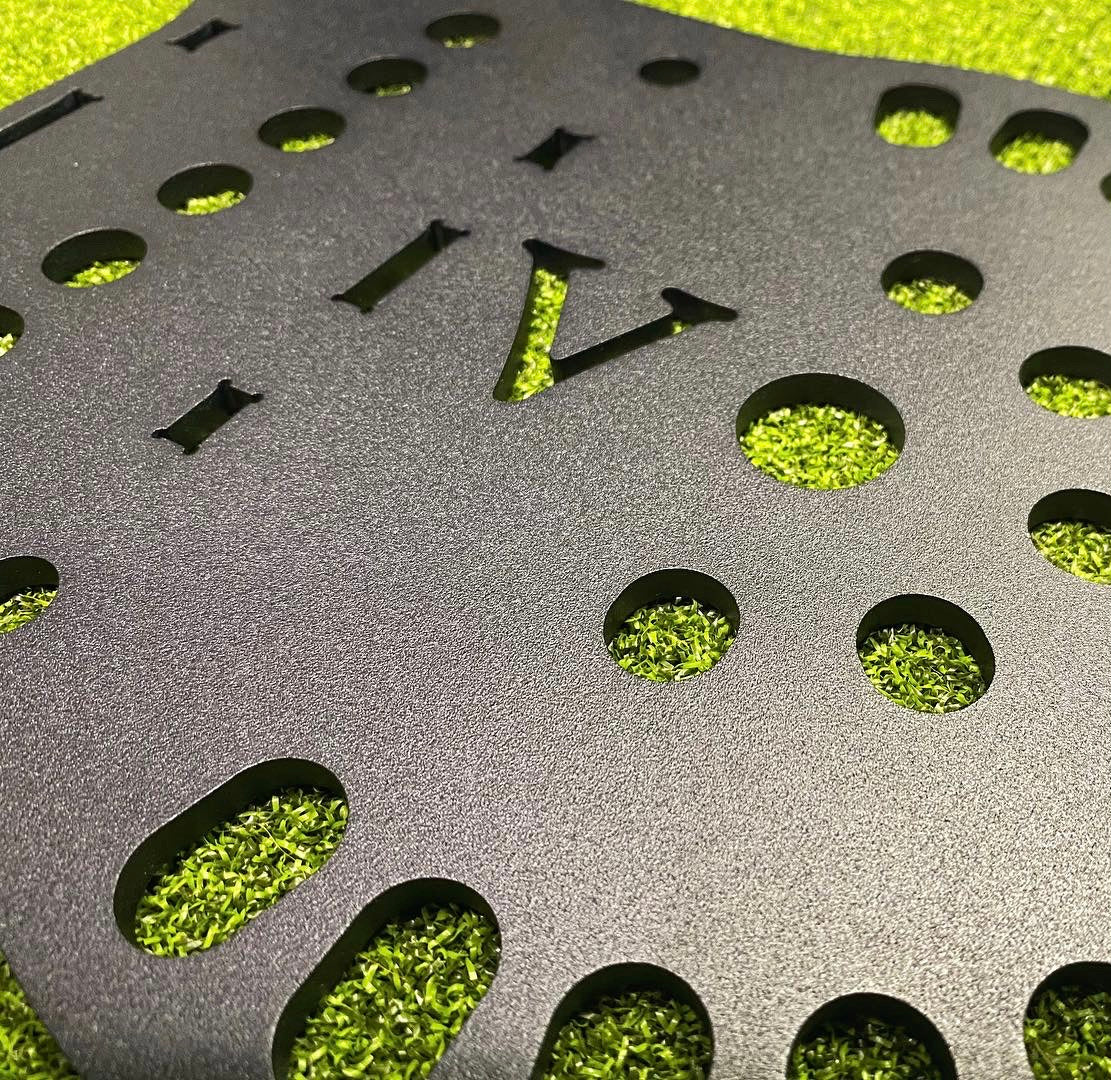

- Textured Black Powder Coat Finish
- Shipping Weight = 40 lbs
- Max weight capacity = 250 lbs per arm (static/resting/controlled stops)
NOT Included
- Hitch pins NOT included, must be purchased separately (4.5” minimum length required)
- Adapters ONLY, 3" x 3" tubes are NOT included
WARNINGS
- NEVER use for dropped weights or as a dynamic spotter arm/device! Damage to your squat rack upright will occur from dropping weight. The adjusting pin and brackets are ONLY meant for supporting static loads and controlled stops at the end of a repetition.
- DO NOT exceed 250 lbs static load per individual arm when supported by the adjusting pin. When the adjusting pin is not in use, the load rating is the same as the original manufacturer’s specs. Failure to follow this will result in a damaged lever arm tube.
- ONLY use this attachment on squat racks that are properly anchored to the floor or wall per the original manufacturer's instructions as tipping due to the extended loads can occur. Similar to spotter arms when used outside the rack.
- ALWAYS use an additional hitch pin inserted laterally through both sides of the original bracket and the squat rack upright post thus acting as a locking cross pin. This allows the additional forces from the extended arms to be supported by the inserted hitch pin and not the roller bolts.
- NOT recommended for commercial facilities or applications
- Failure to acknowledge any of these warnings can result in serious injury. By purchasing this product and checking the consent box during checkout you acknowledge that you have read, understand, and agree that Vendetta Strength and Athletics is not liable in any way for any damage, personal injury, or injury caused by the use or misuse of this product. As always, please exercise safely and responsibly.
By purchasing, the user(s) acknowledges and agrees to follow these warnings and to use responsibly. Vendetta Strength and Athletics is not responsible for any damage as a result of improper use or failure to follow any/all warnings given.
DISCLAIMER
Vendetta Strength & Athletics is an independent company and has no affiliation with any other company. Any reference to any other company is strictly for descriptive identification purposes only.
We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with Titan, Rep, or with any other company mentioned that may be affiliated with the product names, logos, brands, and other trademarks depicted or referred to within.
WARRANTY
We strive to design products that will last forever, but parts inevitably wear out over time and heavy use. This is why all of our parts and components (i.e. rollers, brackets, hardware, etc.) are covered by our lifetime structural warranty. As long as we're in business, your product will be supported. We are committed to standing by our products and customers for the long haul.
PROUDLY BUILT IN AMERICA (Chattanooga, Tennessee) by a small family business
